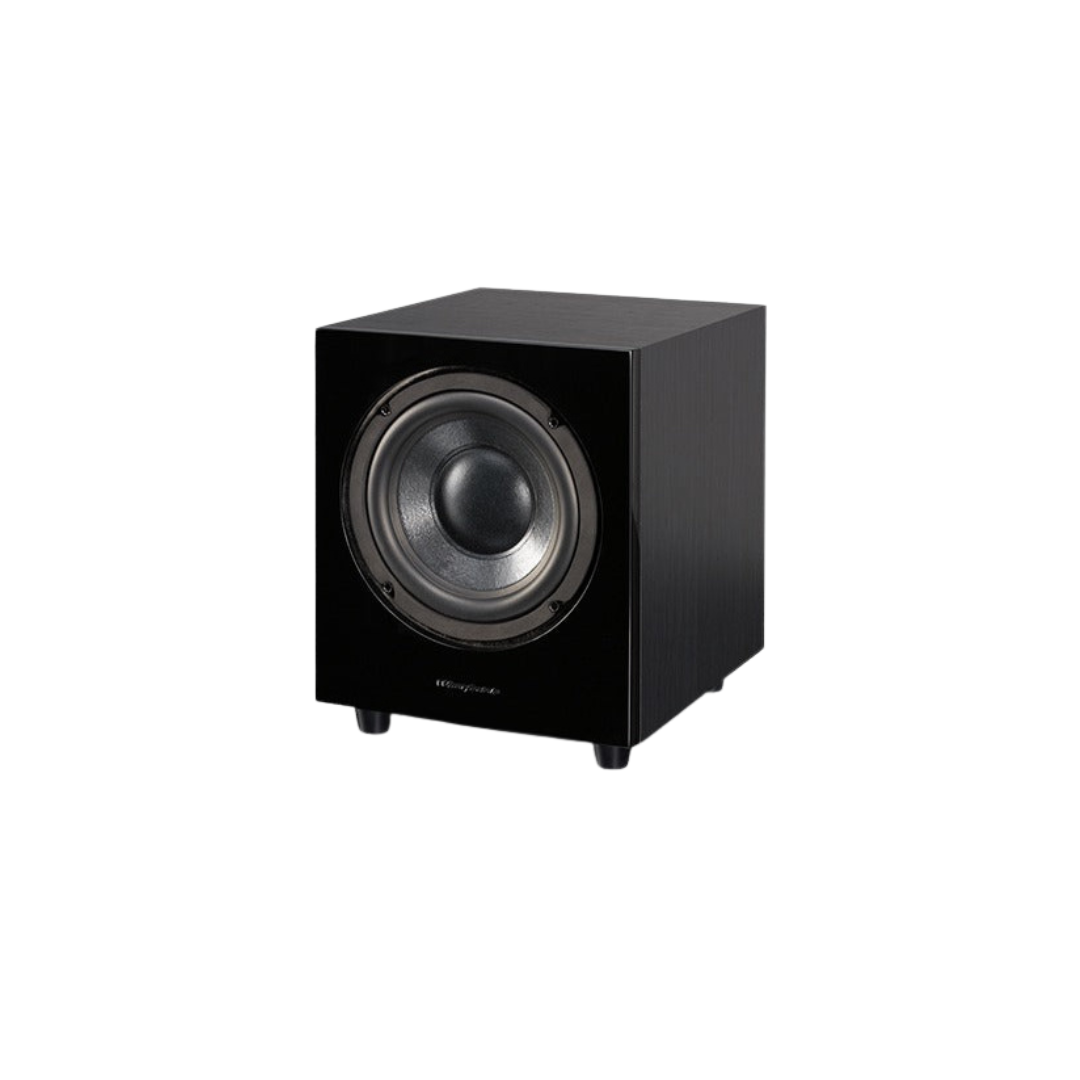

The D8 and D10 subwoofers are the perfect way of enhancing your stereo or home system to produce an excellent low-end performance. The cabinet construction of the new D10 has been aesthetically enhanced, with new high-gloss lacquered front baffles and cosmetically enhanced veneers. Not only is this a significant improvement, but the new look is also designed to match perfectly with the new and award-winning Diamond 200 series, which is already gaining outstanding reviews internationally.
Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D10 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and intensive bass response. The D10 also employs a custom designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.
Specifications
Drive Units 1 x 10″ (250mm) cone long-throw Frequency Response (+/-3dB) 35Hz – 150Hz Amplifier Power Output 150W Peak Power Output 300W Line Input Sensitivity 100mV for maximum output Crossover Range 30Hz – 150Hz Inputs Stereo Line In (2 x RCA Phono) Mono (LFE) Line In (RCA Phono) Input Impedance Line In 10kOhms LFE 5kOhms Signal-to-noise ratio >85dB Avg. Max Output @1m 110dB Features Low pass filter slope adjustment Phase inversion Auto on/off High pass output Dimensions 363 (+30) x 333 x 372 (+22) Net Weight 14kg Gross Weight 16.5kg Accessories IEC power cord, spikes as standard - Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
- Low-level inputs, dedicated LFE input
- Auto power sensor
