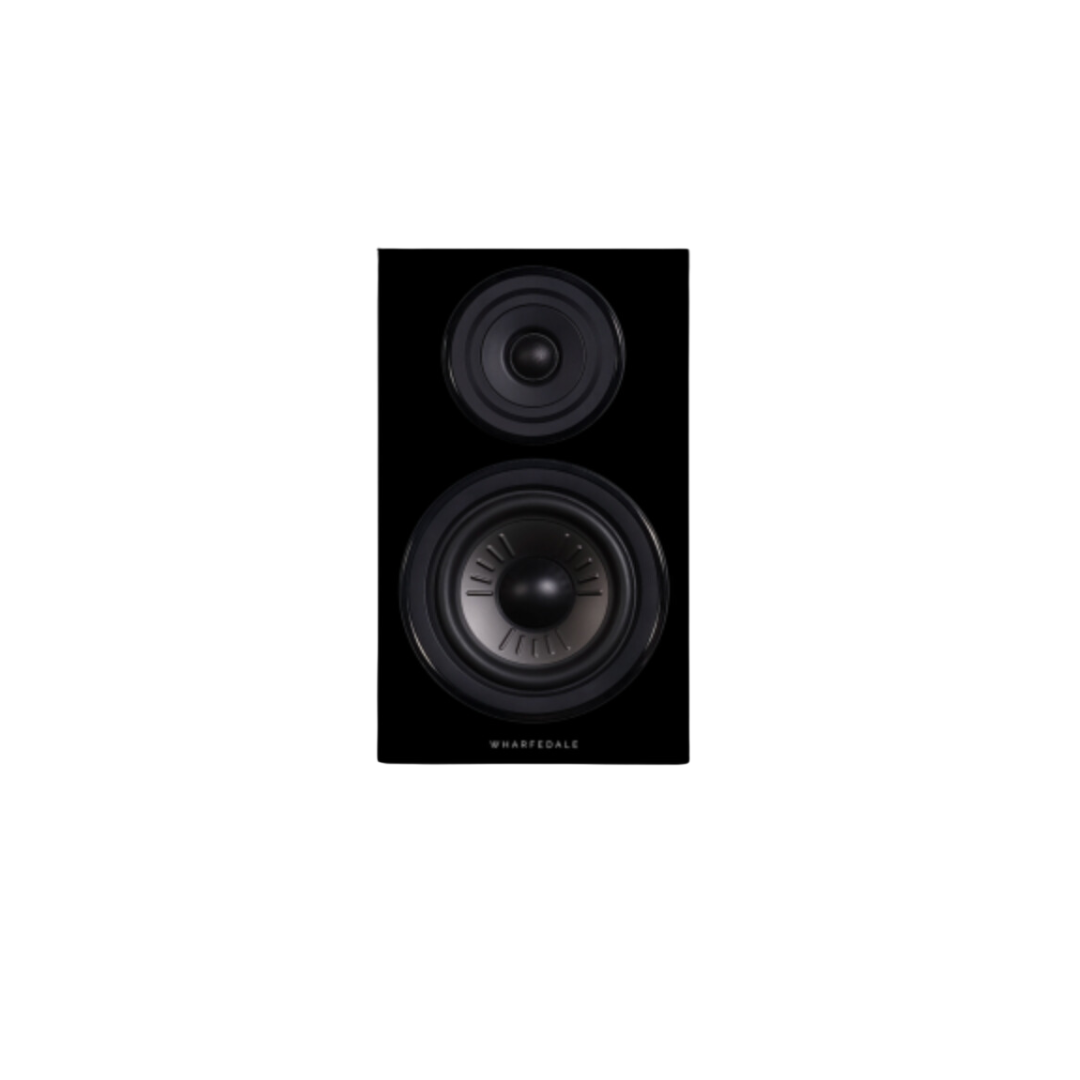

Still compact but with increased cabinet volume and driver size for even more potency, the Wharfedale DIAMOND 12.2 offers a little more from a traditional standmount (or bookshelf) speaker format and embodies the history and performance values of the Wharfedale DIAMOND series.
Perfect for larger rooms and more powerful 2-channel hi-fi systems, the DIAMOND 12. features a high-performance 150mm (6.5”) KlarityTM driver for extended, tight bass, and a superb 25mm (1”) woven polyester dome tweeter for open and smoothly extended high frequencies.
Specifications
| General description | 2-way bookshelf speaker |
|---|---|
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 6.5″(150mm) advanced PP Cone |
| Treble driver | 1″(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 88dB |
| Recommended amplifier power | 20-120W |
| Peak SPL | 96dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.0Ω |
| Frequency response(+/-3dB) | 50Hz ~ 20kHz |
| Bass extension(-6dB) | 43Hz |
| Crossover frequency | 2.0kHz |
| Cabinet Volume (in litres) | 11.8L |
| Dimensions ( H x W x D ) | 335 x 200 x (285+28) mm |
| Net weight | 8.2kg/pcs |
