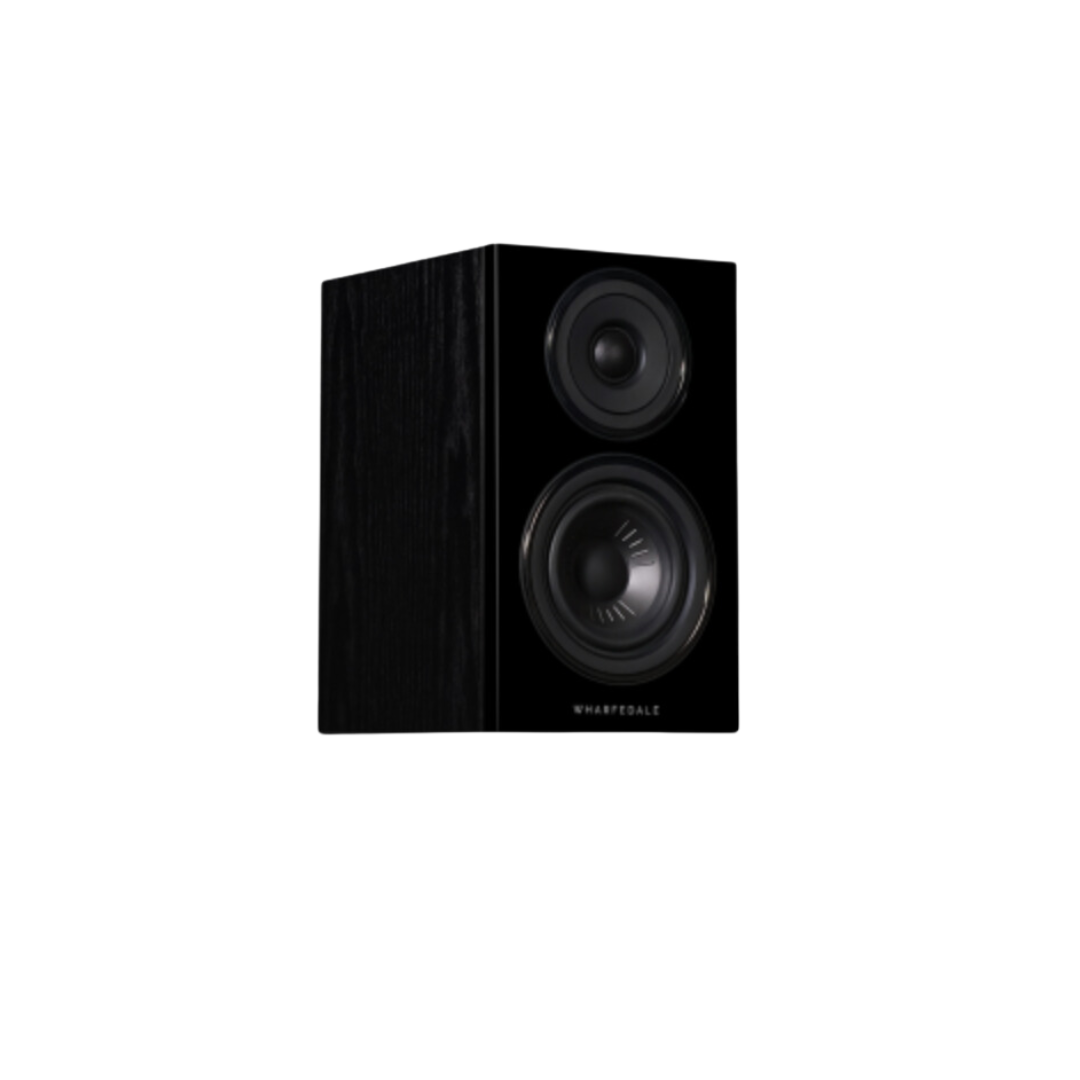

The true all-rounder, the Wharfedale DIAMOND 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale DIAMOND series.
The perfect ‘affordable’ hi-fi speaker, the DIAMOND 12.1 offers the best of both worlds – compact size with power and detail.
Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the DIAMOND 12.1 is designed and certified to perform, regardless of room size and application.
The DIAMOND 12.1 features a high-performance 130mm (5”) KlarityTM driver for exceptional timing and refined bass. The superb 25mm (1”) woven polyester dome tweeter delivers open and smoothly extended high frequencies.
Specifications
| General description | 2-way bookshelf speaker |
|---|---|
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 5″(130mm) advanced PP Cone |
| Treble driver | 1″(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 88dB |
| Recommended amplifier power | 20-100W |
| Peak SPL | 96dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.0Ω |
| Frequency response(+/-3dB) | 65Hz ~ 20kHz |
| Bass extension(-6dB) | 60Hz |
| Crossover frequency | 2.6kHz |
| Cabinet Volume (in litres) | 8.2L |
| Dimensions ( H x W x D ) | 312 x 180mm x (250+28) mm |
| Net weight | 6.8kg/pcs |
